Product Specifications

Part Number:R11025BAV
UPC Number:765809952126
Style:Cartridge Hydraulic Metal Canister Filter
Type:Full Flow
Media:Stainless Mesh
Height:29.8 (757)*
Outer Diameter:5.51 (140)*
Inside Diameter:2.87 (73)*
Beta Ratio:2
Nominal Micron Rating:25
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

No Gaskets found

Principle Application

Various Industrial Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R11025BAV

Error: Embedded data could not be displayed.

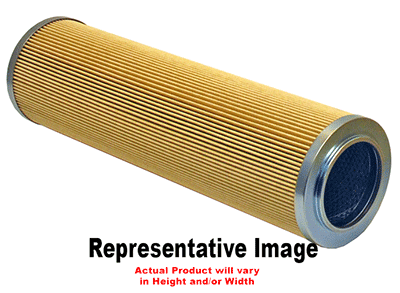

Representative Image
